Base Slot Top
The TOP Slot Base is the advanced model of our collection.
It differs from the LITE model for the removable profiles (sides and front), for the possibility of creating banks or carousels, for the removable laminated plywood top surface that allows easy replacement of the slot machine, and for the easily removable and replaceable footrest with different types of chair connections.
The TOP Slot Base comes in a range of sizes, therefore adapting to all different slot machine models and sizes.
It is available in both fixed and adjustable height with 4 different adjustments 5cm – 1,97” apart.
The base consists of a stamped steel structure with an embossed black powder coat finish for greater wear resistance. The type of finishing and color are customizable.
Small hatches are positioned on each side to allow easy cable routing.
The base is equipped with a lockable opening door, which position is adjustable in depth.
INSTALLATION INSTRUCTIONS
Slot positioning is important to avoid compromising the ergonomics of the slot board
To allow the player to stretch their legs and achieve maximum comfort, we suggest positioning the door as internally as possible.
Features
Finishes
Customized finishing upon request
Standard black powder coating
Optional

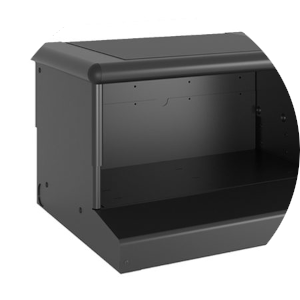

Adjustable height
Aluminum bar to secure the base to the floor for seismic areas or installation on ships
Standard spacers available in widths of 10cm – 3,94”, 15cm – 5,91” e 20cm – 7,87” or customizable
Corner spacers, customizable

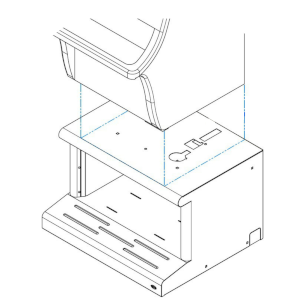

Pre drilled hole pattern available upon request

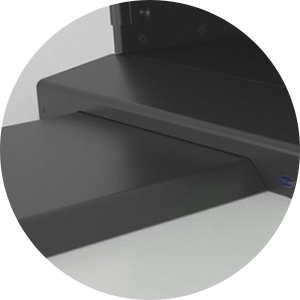

Footrest with different chair connection options

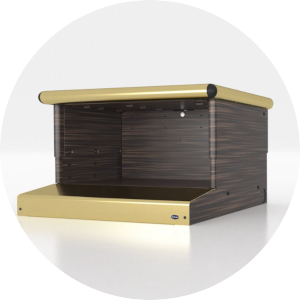

Front and side profiles lighting with single color or RGB LEDs
Backlit logo on footrest front edge, with single color or RGB LEDs

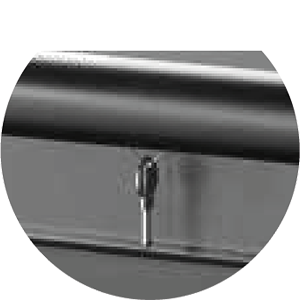

Standard or customizable door lock

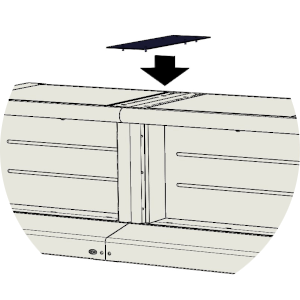

Infill

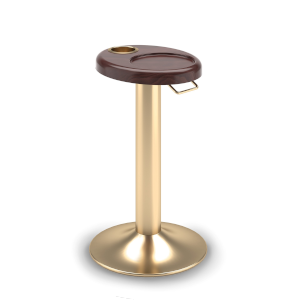

Service table in wood

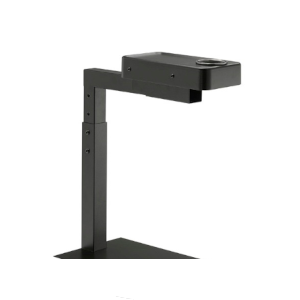

Steel service table adjustable in height and depth

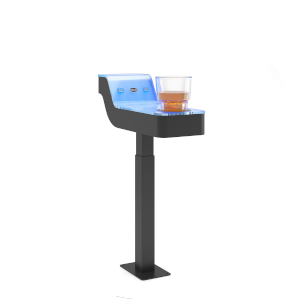

Tech service table adjustable in height and depth, with USB port and back lit surface
Size

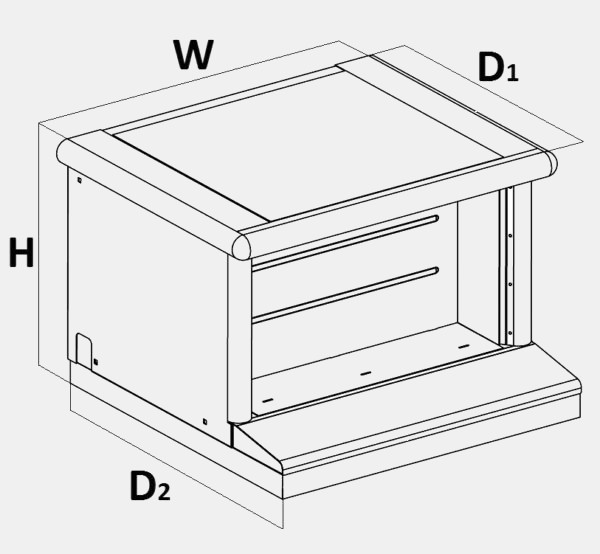

Base slot Top fixed dimensions
Fixed height model weight 50x70xh45cm/ 19,69”x 27,56”x 17,72”= 37 kg
W: 60cm 23,62 in. 70cm 27,56 in. 80cm 31,50 in.
D1: 40cm 15,75 in. 50cm 19,69 in. 60cm 23,62 in.
D2: 50cm 19,69 in. 60cm 23,62 in. 70cm 27,56 in.
H: 35 13,78 in. 40cm 15,75 in. 45cm 17,72 in. 50cm 19,69 in. 55cm 21,65 in. 60cm 23,62 in.
Base slot Top dimensione regolabile
Weight adjustable height model 50x70xh35-50 cm/19,69”x 27,56”x13,7”- 19,69”= 44 kg
W: 60cm 23,62 in. 70cm 27,56 in. 80cm 31,50 in.
D1: 40cm 15,75 in. 50cm 19,69 in. 60cm 23,62 in.
D2: 50cm 19,62 in. 60cm 23,62 in. 70cm 27,56 in.
H: 35>50cm 13,78>19,69 in. 40>55cm 15,75>21,65 in.
Certifications
Horizontal fatigue resistance certification EN 1730:2000
