BASE SLOT TOP

WHY CHOOSE US

The TOP Slot Base is the advanced model of our collection.
It differs from the LITE model for the removable profiles (sides and front), for the possibility of creating banks or carousels, for the removable laminated plywood top surface that allows easy replacement of the slot machine, and for the easily removable and replaceable footrest with different types of chair connections.
The TOP Slot Base comes in a range of sizes, therefore adapting to all different slot machine models and sizes.
It is available in both fixed and adjustable height with 4 different adjustments 5cm – 1,97” apart.
The base consists of a stamped steel structure with an embossed black powder coat finish for greater wear resistance. The type of finishing and color are customizable.
Small hatches are positioned on each side to allow easy cable routing.
The base is equipped with a lockable opening door, which position is adjustable in depth.

Piano estraibile

Passacavi apri e chiudi

Pedana rimovibile e sostituibile

Profili smontabili

Serratura

INSTALLATION INSTRUCTIONS

Slot machine positioning is important in order not to compromise the ergonomics of the slot machine button panel.
To allow the player to stretch his legs and obtain maximum comfort, we suggest positioning the door as further in as possible.

Options

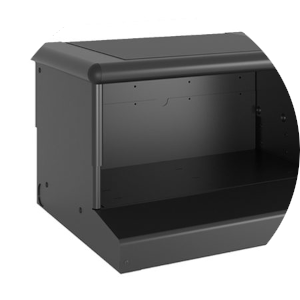

Adjustable height

Corner spacers, customizable

Infill

Standard spacers available in widths of 10cm – 3,94”, 15cm – 5,91” e 20cm – 7,87” or customizable

Steel service table adjustable in height and depth

Tech service table adjustable in height and depth, with USB port and back lit surface

Service table in wood

 Footrest with different chair connection options

Front and side profiles lighting with single color or RGB LEDs

 Backlit logo on footrest front edge, with single color or RGB LEDs

Standard or customizable door lock

Pre drilled hole pattern available upon request

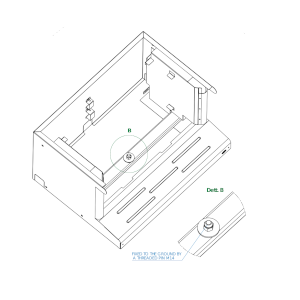

Aluminum bar to secure the base to the floor for seismic areas or installation on ships

Finishing

Customized finishing upon request

Standard black powder coating

Dimensions

ALL DIMENSIONS ARE CUSTOMIZABLE

Base slot Top fixed dimensions

W
60cm 23,62 in.
70cm 27,56 in.
80cm 31,50 in.

D1
40cm 15,75 in.
50cm 19,69 in.
60cm 23,62 in.

D2
50cm 19,69 in.
60cm 23,62 in.
70cm 27,56 in.

H

35 13,78 in.
40cm 15,75 in.
45cm 17,72 in.
50cm 19,69 in.
55cm 21,65 in.
60cm 23,62 in.

Weight of the fixed height model 50x70xh45cm/ 19,69”x 27,56”x 17,72”= 28 kg

Base slot Top Adjustable dimensions

W
60cm 23,62 in.
70cm 27,56 in.
80cm 31,50 in.

D1
40cm 15,75 in.
50cm 19,69 in.
60cm 23,62 in.

D2
50cm 19,62 in.
60cm 23,62 in.
70cm 27,56 in.

H
35>50cm 13,78>19,69 in.
40>55cm 15,75>21,65 in.

Weight of the height adjustable model 50x70xh35-50 cm/19,69”x 27,56”x13,7”- 19,69”= 35 kg

Certifications

RINA – Safety certification for products installed on board of ships

Horizontal fatigue resistance certification EN 1730:2000
