BASE SLOT LITE

WHY CHOOSE US

The LITE Slot Base is the basic model of our collection.
It comes in a range of sizes, therefore adapting to all different slot machine models and sizes.
It is available in both fixed and adjustable height with 4 different adjustments 5cm – 1,97” apart.
The base consists of a stamped steel structure with an embossed black powder coat finish for greater wear resistance. The type of finishing and color are customizable.
Punch out holes are positioned on each side to allow easy cable routing.
The base is equipped with a lockable opening door, which position is adjustable in depth.
.

Cable hole

Security lock

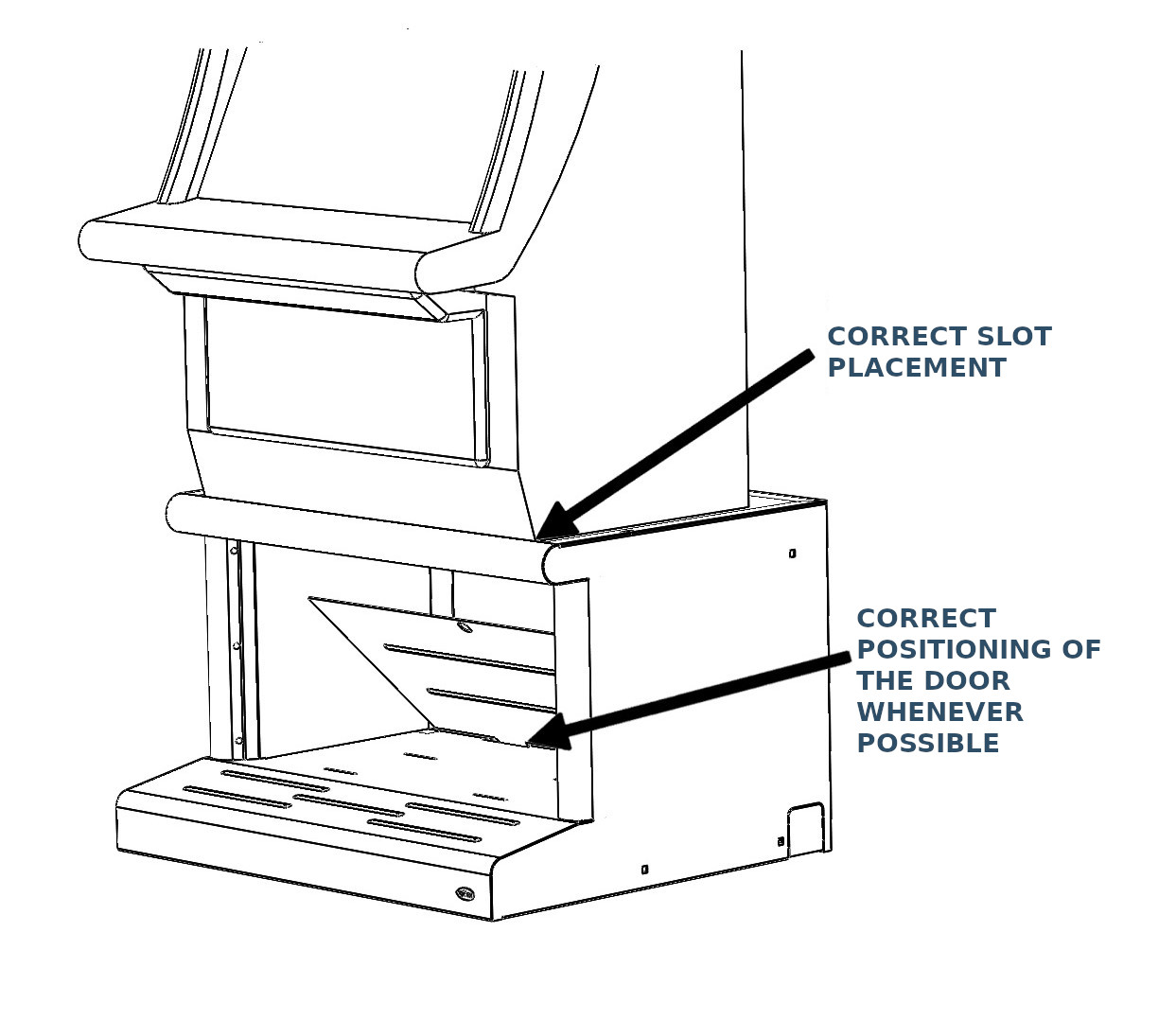

INSTALLATION INSTRUCTIONS

Slot machine positioning is important in order not to compromise the ergonomics of the slot machine button panel.
To allow the player to stretch his legs and obtain maximum comfort, we suggest positioning the door as further in as possible.

Options

Adjustable height

Front profile lighting with single color or RGB LEDs

Corner spacers, customizable

Standard spacers available in widths of 10cm – 3,94”, 15cm – 5,91” e 20cm – 7,87” or customizable

Steel service table adjustable in height and depth

Tech service table adjustable in height and depth, with USB port and back lit surface

Service table in wood

Standard or customizable door lock

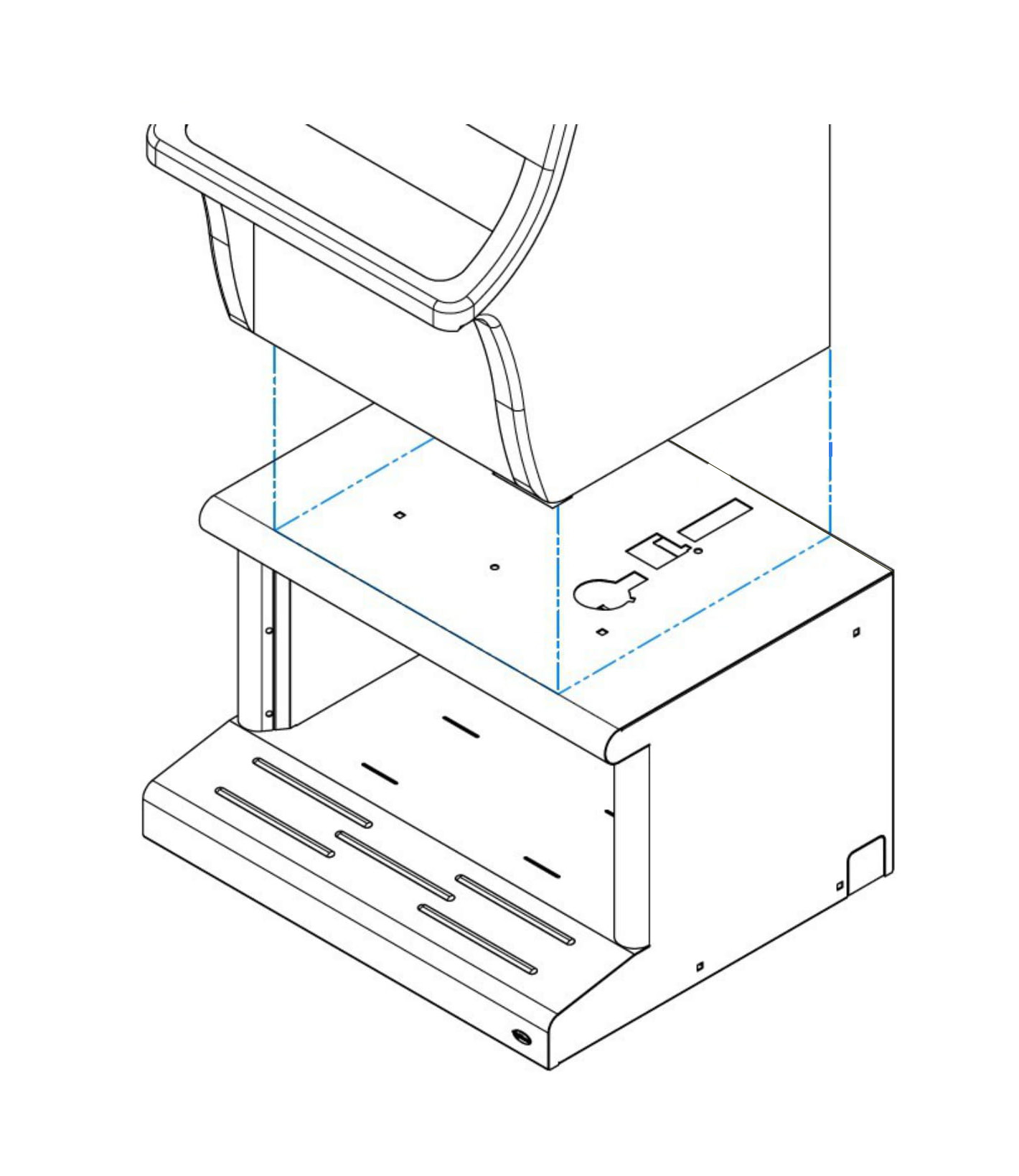

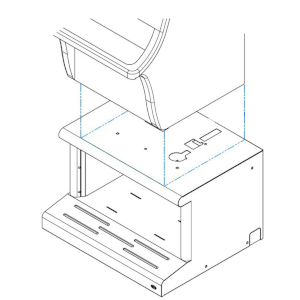

Pre drilled hole pattern available upon request

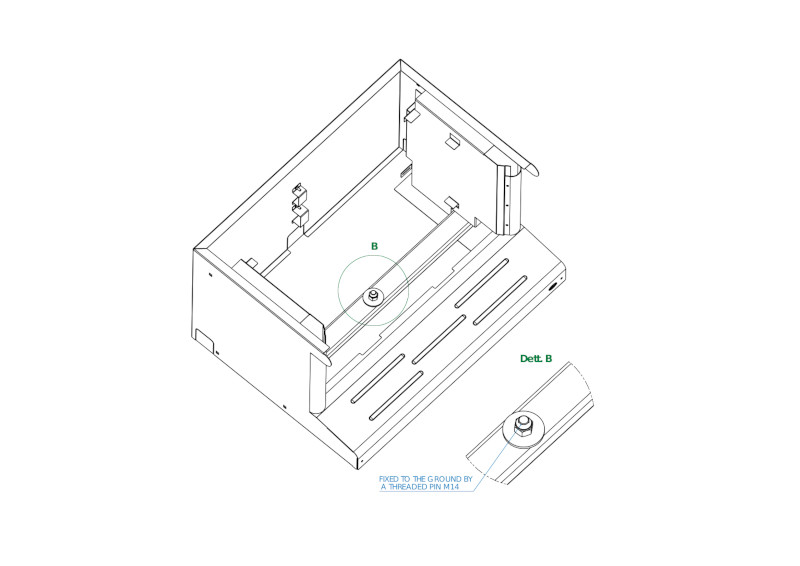

Aluminum bar to secure the base to the floor for seismic areas or installation on ships

Finishing

Customized finishing upon request

Standard black powder coating

Dimensions

ALL DIMENSIONS ARE CUSTOMIZABLE

Base slot lite fixed dimensions

W
60cm 23,62 in.
70cm 27,56 in.
80cm 31,50 in.

D1
40cm 15,75 in.
50cm 19,69 in.
60cm 23,62 in.

D2
50cm 19,69 in.
60cm 23,62 in.
70cm 27,56 in.

H
35cm 13,78 in.
40cm 15,75 in.
45cm 17,72 in.
50cm 19,69
55cm 21,65 in.
60cm 23,62 in.

Weight of the fixed height model 50x70xh45cm/ 19,69”x 27,56”x 17,72”= 28 kg

Base slot lite adjustable dimensions

W
60cm 23,62 in.
70cm 27,56 in.
80cm 31,50 in.

D1
40cm 15,75 in.
50cm 19,69 in.
60cm 23,62 in.

D2
50cm 19,69 in.
60cm 23,62 in.
70cm 27,59 in.

H

35>50cm 12,78>19,69 in.

Weight of the height adjustable model 50x70xh35-50 cm/19,69”x 27,56”x13,7”- 19,69”= 35 kg

Certifications

Horizontal fatigue resistance certification EN 1730:2000
