Base Slot Lite
The LITE Slot Base is the basic model of our collection.
It comes in a range of sizes, therefore adapting to all different slot machine models and sizes.
It is available in both fixed and adjustable height with 4 different adjustments 5cm – 1,97” apart.
The base consists of a stamped steel structure with an embossed black powder coat finish for greater wear resistance. The type of finishing and color are customizable.
Punch out holes are positioned on each side to allow easy cable routing.
The base is equipped with a lockable opening door, which position is adjustable in depth.
Slot positioning is important to avoid compromising the ergonomics of the slot board
To allow the player to stretch their legs and achieve maximum comfort, we suggest positioning the door as internally as possible.
INSTALLATION INSTRUCTIONS
Slot positioning is important to avoid compromising the ergonomics of the slot board
To allow the player to stretch their legs and achieve maximum comfort, we suggest positioning the door as internally as possible.
Features
Finishes
Customized finishing upon request
Standard black powder coating
Optional
Aluminum bar to secure the base to the floor for seismic areas or installation on ships
Standard spacers available in widths of 10cm – 3,94”, 15cm – 5,91” e 20cm – 7,87” or customizable
Corner spacers, customizable
Pre drilled hole pattern available upon request
Front profile lighting with single color or RGB LEDs
Standard or customizable door lock
Service table in wood
Steel service table adjustable in height and depth
Tech service table adjustable in height and depth, with USB port and back lit surface
Size

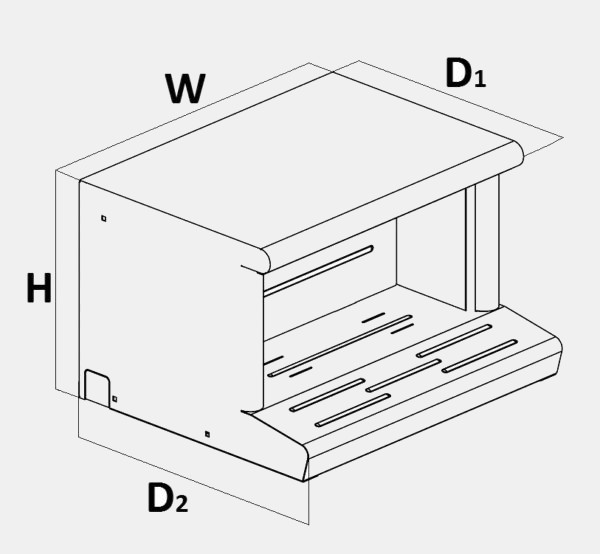

Base slot lite fixed dimensions
Weight of the fixed height model 50x70xh45cm/ 19,69”x 27,56”x 17,72”= 28 kg
W: 60cm 23,62 in. 70cm 27,56 in. 80cm 31,50 in.
D1: 40cm 15,75 in. 50cm 19,69 in. 60cm 23,62 in.
D2: 50cm 19,69 in. 60cm 23,62 in. 70cm 27,56 in.
H: 35cm 13,78 in. 40cm 15,75 in. 45cm 17,72 in. 50cm 19,69 55cm 21,65 in. 60cm 23,62 in.
Base slot lite adjustable dimensions
Weight of the height adjustable model 50x70xh35-50 cm/19,69”x 27,56”x13,7”- 19,69”= 35 kg
W: 60cm 23,62 in. 70cm 27,56 in. 80cm 31,50 in.
D1: 40cm 15,75 in. 50cm 19,69 in. 60cm 23,62 in.
D2: 50cm 19,69 in. 60cm 23,62 in. 70cm 27,59 in.
H: 35>50cm 12,78>19,69 in.
